5mm Kapa-Fix Adhesive Foam Board (24 sheets) 1000mm x 700mm Presentation Displays Modelling Photos

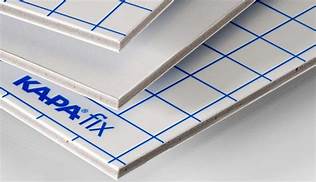

KAPA®FIX
THE LIGHTWEIGHT FOAMBOARD WITH SELF-ADHESIVE COVERING LAYER ON ONE SIDE.

KAPA®fix is a lightweight foamboard with self-adhesive, aluminium-reinforced paperboard covering layers on one or both sides – and a polyurethane foam core. KAPA®fix-1 has a self-adhesive covering layer on one side;

As a ready-to-laminate substrate, KAPA®fix has been developed especially for fast manual and machine lamination. Conventional large photos, digital prints, posters, plans or maps can be laminated onto the board without any problems. But KAPA®fix boards can also be used as a mount in other applications such as for fabrics or films, or as fill-in panels for exhibition stands and display systems.

The outstandingly flat boards are rigid and the aluminium-reinforced covering layers mean there is no need to counter-laminate on the reverse side. In addition, thanks to the self-adhesive covering layers, the work process is reduced by one step. The boards are flame retardant in accordance with DIN 4102-1:1998-05, building material class B2. For KAPA®fix-1 this applies to panel thicknesses ranging from 3 mm to 10 mm; for KAPA®fix-2 to thicknesses from 5 mm to 10 mm.

KAPA®fix is even suitable for short-term outdoor applications due to the special structure of its covering layers. Once the edges of the foamboard are covered by edge protecting profiles, KAPA®fix sheets can be used outdoors for up to 3 months, depending on the ambient climatic conditions. We recommend carrying out the appropriate tests under real conditions before final use.

APPLICATION

• Displays (POS/POP)

• Signage | Lettering

• Exhibition design

• Model making | Presentations

• Creative work

SPECIFICATION

• Interior

• Normally inflammable (fire‑rated)

• Stiffness | Rigidity

• Lightweight

• Formability

MATERIAL

• Lightweight foam boards

PROCESSING

• Laminating

• Cutting | Die cutting | Plotting

• Water jet cutting

• Sawing

• Gluing

• Screwing
